Learn to create a custom form component which takes user input and on submit would send an email with an attached pdf which would contain the data entered in the form.
Objective
- Understand how to create a custom component in AEM.
- Understand how to create a custom Sling Servlet which would send an email.
- Understand how to create a custom email.
- Understand how to do the OSGI configurations for Mail Service.
- Understand how to use pdfbox API to create a Pdf in the DAM Structure.
What you will build
A custom form component will be built taking user input in the form field. A Sling Servlet will be built which would be creating a pdf in the content DAM Structure and attaching the same pdf to the custom email.
Pre-Requisite
- Java 1.8+
- Maven
- Eclipse/ IntelliJ or any IDE
- AEM Author Instance
- SMTP Email Server
Define the Custom Form Component

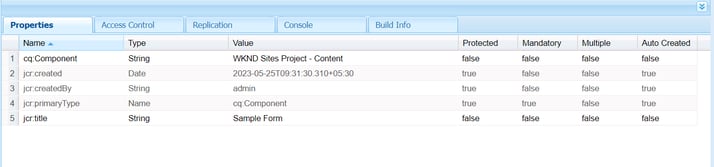

- Create a component under /apps//components.
- sample_form is the component.
![Email Generation (with Attachment) using Form Component](https://www.coforge.com/hs-fs/hubfs/EmailGeneration1.png?width=714&height=167&name=EmailGeneration1.png)

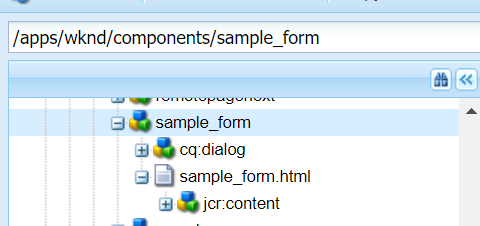

- Create the node cq:dialog and file sample_form.html under the component.
![Email Generation (with Attachment) using Form Component](https://www.coforge.com/hubfs/EmailGeneration2.png)

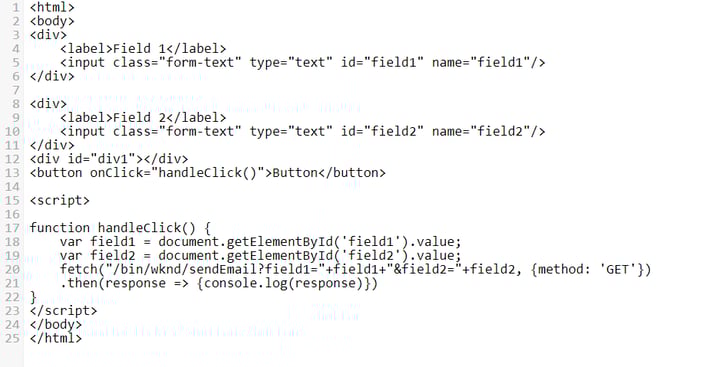

- Add the below code in the sample_form.html.
![Email Generation (with Attachment) using Form Component](https://www.coforge.com/hs-fs/hubfs/EmailGeneration3.png?width=709&height=368&name=EmailGeneration3.png)
- Now, open wknd repo in any of the IDE and create a Servlet under wknd.core package.
- For the Servlet code, you can refer to the following URL :
https://github.com/anshul039/AEM-WKND/blob/main/core/src/main/java/com/adobe/aem/guides/wknd/core/servlets/EmailServlet.java
- Now, go to http://localhost:4502/system/console/configMgr
- Search for Day CQ Mail Service(day.cq.mailer.DefaultMailService).

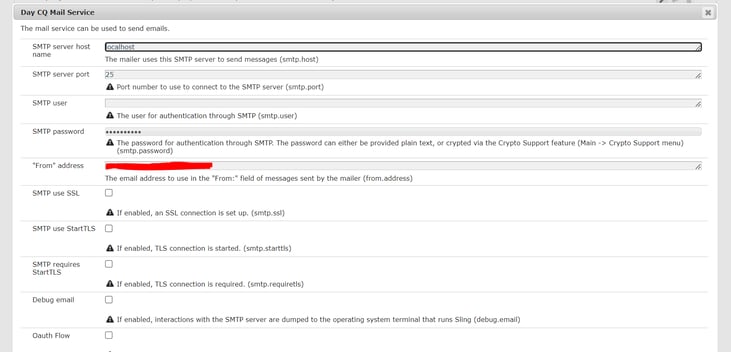

- Update the configurations according to required SMTP server. Below screenshot can be used as reference.
- Update SMTP Server, Port, Username, Password, from details. Below SMTP Server host name is used for testing purpose.
- Actual hostname can be configured as required.
![Email Generation (with Attachment) using Form Component](https://www.coforge.com/hs-fs/hubfs/EmailGeneration4.png?width=731&height=352&name=EmailGeneration4.png)
- Make sure your SMTP Server is up.
- Once the code is deployed to the Server, create a sample page and add the component to the Page.

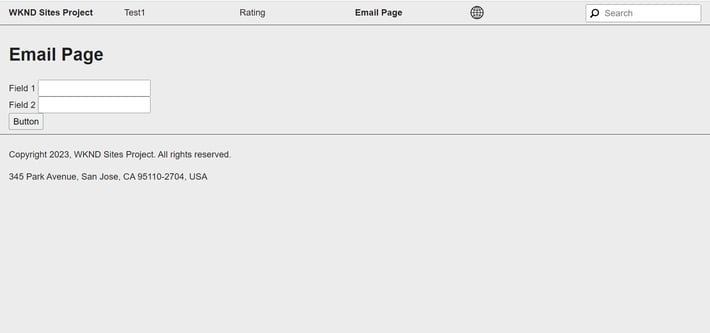

- The page would look as below
![Email Generation (with Attachment) using Form Component](https://www.coforge.com/hs-fs/hubfs/EmailGeneration5.png?width=710&height=333&name=EmailGeneration5.png)

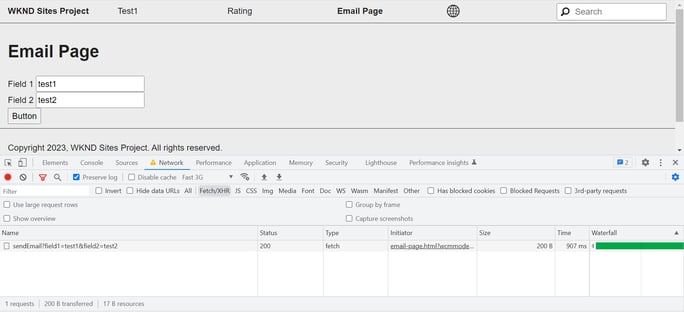

- Enter the values in the form and click on Button. You can see in the network tab, a request is triggered.
- On Click of Button, 2 actions will be performed.
- Email Triggered with PDF attachment.
- Storing same PDF in AEM DAM.
![Email Generation (with Attachment) using Form Component](https://www.coforge.com/hs-fs/hubfs/EmailGeneration6.png?width=684&height=313&name=EmailGeneration6.png)

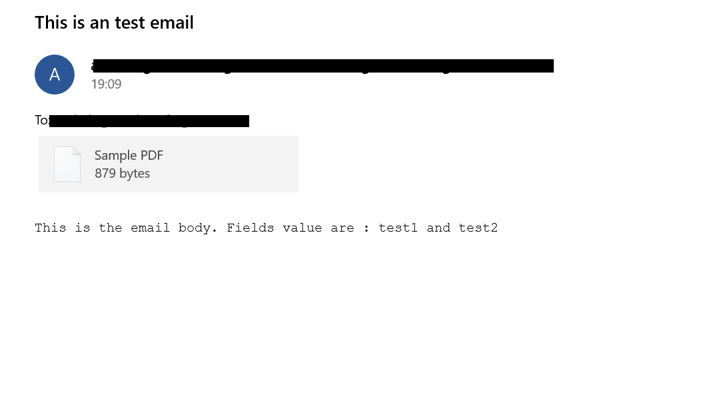

Once, you get the success response with the Http Status as 200 OK. Check your email, you must have received an email.
![Email Generation (with Attachment) using Form Component](https://www.coforge.com/hs-fs/hubfs/EmailGeneration7.png?width=709&height=402&name=EmailGeneration7.png)

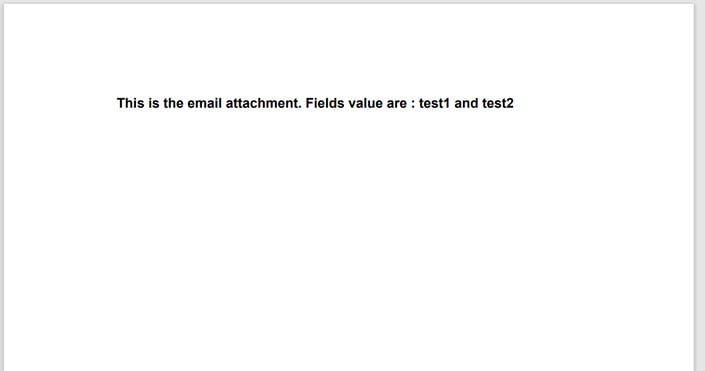

- You can find the pdf content as below. You can modify the pdf content through the code in which format user would like to display.
![Email Generation (with Attachment) using Form Component](https://www.coforge.com/hs-fs/hubfs/EmailGeneration8.png?width=705&height=371&name=EmailGeneration8.png)

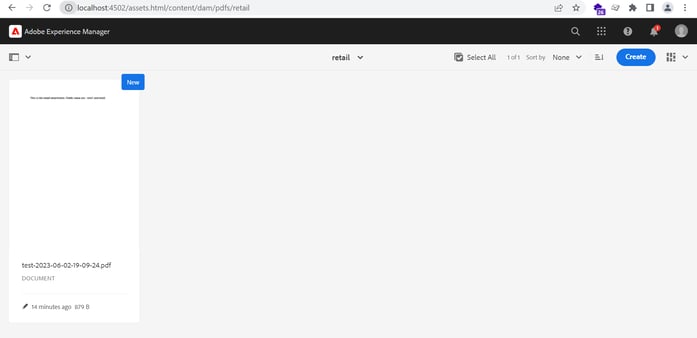

- Also, once you click on Button, the corresponding pdf is also stored in AEM DAM.
![Email Generation (with Attachment) using Form Component](https://www.coforge.com/hs-fs/hubfs/EmailGeneration9.png?width=697&height=338&name=EmailGeneration9.png)
- User can store the PDF in any of the path under/content/dam
