Deploying “Zero Click Deployment” of 3 Tier applications with CloudFormation Template through AWS CodePipeline

article banner

In this post, we will explain setting up Code pipeline using cloudformation templates. In this case, we will be using S3 bucket to store template or you may use repository of your choice.

CodePipeline1

Your first step will be creating one custom and one default role in your IAM console. These roles will be created specifically for CodePipeline to access your other AWS services.

CodePipeline2

Keep in mind that there is no CodePipeline role provided by AWS, but we can select EC2 and customize the role for this case.

CodePipeline3

Our next step is to create permissions, here you can mention any tags you may need before creating your role.

CodePipeline4

Once this role is created, we can then attach our custom inline policy which is given below.

CodePipeline5

The inline policy:

{
    "Statement": [
        {
            "Action": [
                "S3:GetObject",
                "S3:GetObjectVersion",
                "S3:GetBucketVersioning"
            ],
            "Resource": "*",
            "Effect": "Allow"
        },
        {
            "Action": [
                "S3:PutObject"
            ],
            "Resource": "*",
            "Effect": "Allow"
        },
        {
            "Action": [
                "codecommit:CancelUploadArchive",
                "codecommit:GetBranch",
                "codecommit:GetCommit",
                "codecommit:GetUploadArchiveStatus",
                "codecommit:UploadArchive"
            ],
            "Resource": "*",
            "Effect": "Allow"
        },
        {
            "Action": [
                "codedeploy:CreateDeployment",
                "codedeploy:GetApplicationRevision",
                "codedeploy:GetDeployment",
                "codedeploy:GetDeploymentConfig",
                "codedeploy:RegisterApplicationRevision"
            ],
            "Resource": "*",
            "Effect": "Allow"
        },
        {
            "Action": [
                "elasticbeanstalk:*",
                "ec2:*",
                "elasticloadbalancing:*",
                "autoscaling:*",
                "CloudFormation:*",
                "CloudFormation:*",
                "iam:PassRole"



            ],
            "Resource": "*",
            "Effect": "Allow"
        },
        {
            "Action": [
                "lambda:InvokeFunction",
                "lambda:ListFunctions"
            ],
            "Resource": "*",
            "Effect": "Allow"
        },
        {
            "Action": [
                "opsworks:CreateDeployment",
                "opsworks:DescribeApps",
                "opsworks:DescribeCommands",
                "opsworks:DescribeDeployments",
                "opsworks:DescribeInstances",
                "opsworks:DescribeStacks",
                "opsworks:UpdateApp",
                "opsworks:UpdateStack"
            ],
            "Resource": "*",
            "Effect": "Allow"
        },
        {
            "Action": [
                "CloudFormation:CreateStack",
                "CloudFormation:DeleteStack",
                "CloudFormation:DescribeStacks",
                "CloudFormation:UpdateStack",
                "CloudFormation:CreateChangeSet",
                "CloudFormation:DeleteChangeSet",
                "CloudFormation:DescribeChangeSet",
                "CloudFormation:ExecuteChangeSet",
                "CloudFormation:SetStackPolicy",
                "CloudFormation:ValidateTemplate",
                "iam:PassRole"
            ],
            "Resource": "*",
            "Effect": "Allow"
        },
        {
            "Action": [
                "codebuild:BatchGetBuilds",
                "codebuild:StartBuild"
            ],
            "Resource": "*",
            "Effect": "Allow"
        }
    ],
    "Version": "2012-10-17"
}

Ensure you edit your trust relationship as this is not automatically created in this case. Paste the following under ‘Policy Document’ and click Update Trust Policy.

CodePipeline6 CodePipeline7

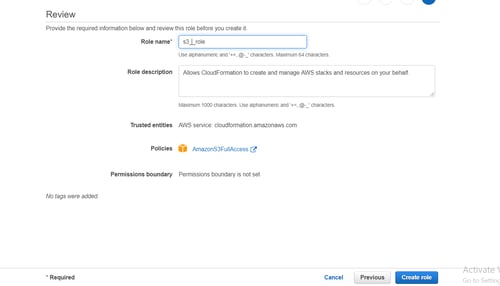

As mentioned above, we need to create 2 roles. The next role is specifically for CloudFormation to access your services. In this case, you’ll be giving CloudFormation full access to your S3 services, and like before, mention any tags you may need before moving on and creating the role.

CodePipeline10 CodePipeline9 CodePipeline10.png

Under the ‘Services’ tab, you will be able to edit your Pipeline settings. First, create a CodePipeline mentioning your Pipeline name, then attach the service role we first created.

CodePipeline11

Our next step will be to select a source stage, in this example, we’ll be using S3 for our code, but the option to select Amazon S3, GIT Hub,AWS CodeCommit, and Amazon ECR is also available.

In is case we are choosing S3 bucket name where our Cloudformation template is saved

CodePipeline12

If you plan on going directly to a deployment stage, the build stage is optional in this case. Choose CloudFormation as your deploy provider and the region for your deployment. For this example, our Action mode will be ‘Create or update a stack’.

CodePipeline13

Finally, mention your Stack name, Artifact name, and the file name of your S3 bucket anme and upon choosing next, the option to create your pipeline will be available.

CodePipeline14 CodePipeline15

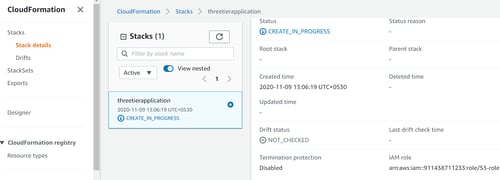

Open CloudFormation in your AWS Console to confirm that your stack has been created.


And that’s all there is to it! You now have your template deployed and your stack created for your CI/CD pipeline

Your 3 three application is deployed once Cloudformation will be completed with VPC, Public and Private Subnet, Internet Gateway, Bastion host, Application server, RDS database , security group , NACL, ALB etc. .

Sample web application are up now:-

CodePipeline17

Your “Zero click Deployment” of Three Tier network diagram for Webapplication is ready -
